3(a). Installing a Sensor - Suspended Ceiling

The ideal height to install a sensor is between 2.8m and 3.2m from the ground to the sensor lens. The minimum height the sensor should be installed is 2.4m and maximum is 3.6m from the ground to the sensor lens

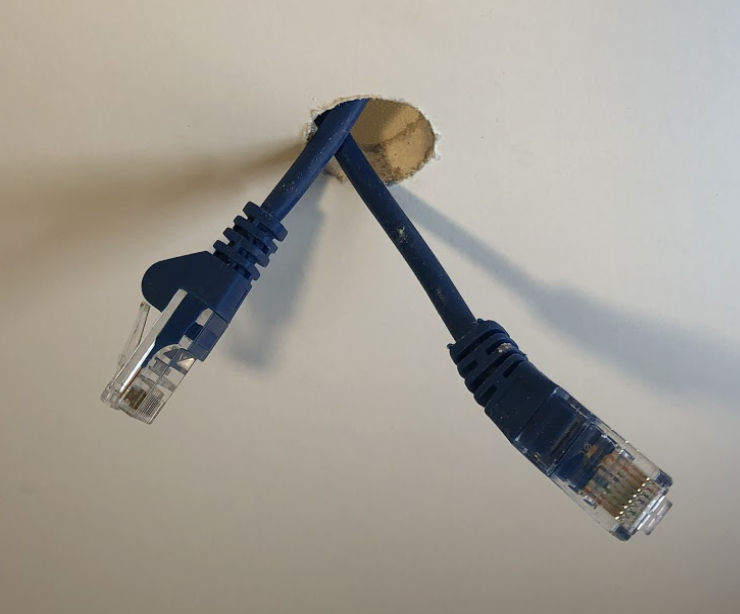

1. In the correct location, drill a 20mm hole and feed cable through.


2. Use Hollow wall anchors; M4, with substrate thickness of 13mm (plasterboard) or 20mm (tiles), to fix the bracket to the roof.


3. Align the arrows on the sensor and the bracket to attach the sensor.
