Is the sensor level?
Updated
January 03, 2024 03:45

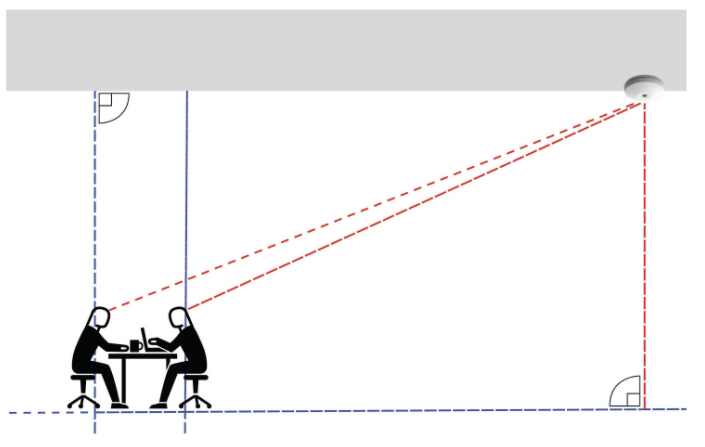

The ceiling must be horizontal
The sensor must be flush-mounted on the ceiling or rod mount
Floor must be flat
