XY Sense Hardware Overview

XY Sense provides the below hardware:

Hardware Image	Name	Description
	XY Sensor	Flat mounted on the ceiling Contains 2 RJ45 sockets (in/out). Mounted in view of nearby workstations to measure occupancy.  Ceiling mount screwed to ceiling substrate via 3 x hollow wall anchors or threaded rod
	Communications Hub (Primary, Secondary)	Can connect up to 18 sensors per hub (3 outputs, each has a max of 6 sensors) Includes 4G device (optional, typical 1 per floor) Requires mains power outlet Hubs linked together via ethernet cable  Generally installed in ceiling space

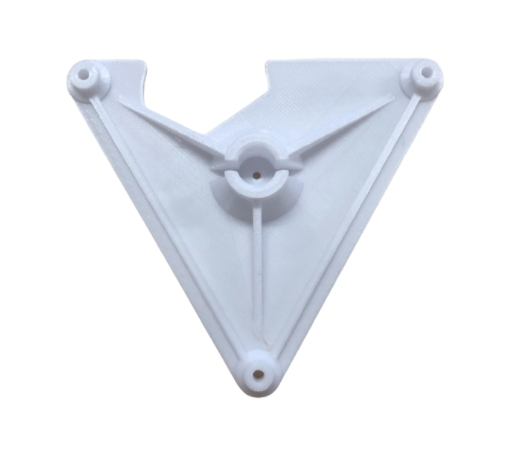

	Mounting Bracket	Gets installed to the ceiling and the XY Sensor clips to this, provided with each sensor
	Rod Mount Attachment	If sensors are being installed using a rod mount, a rod mount attachment is required, this attaches to the mounting bracket with screws (provided)
