Obstructions Calculator

Updated

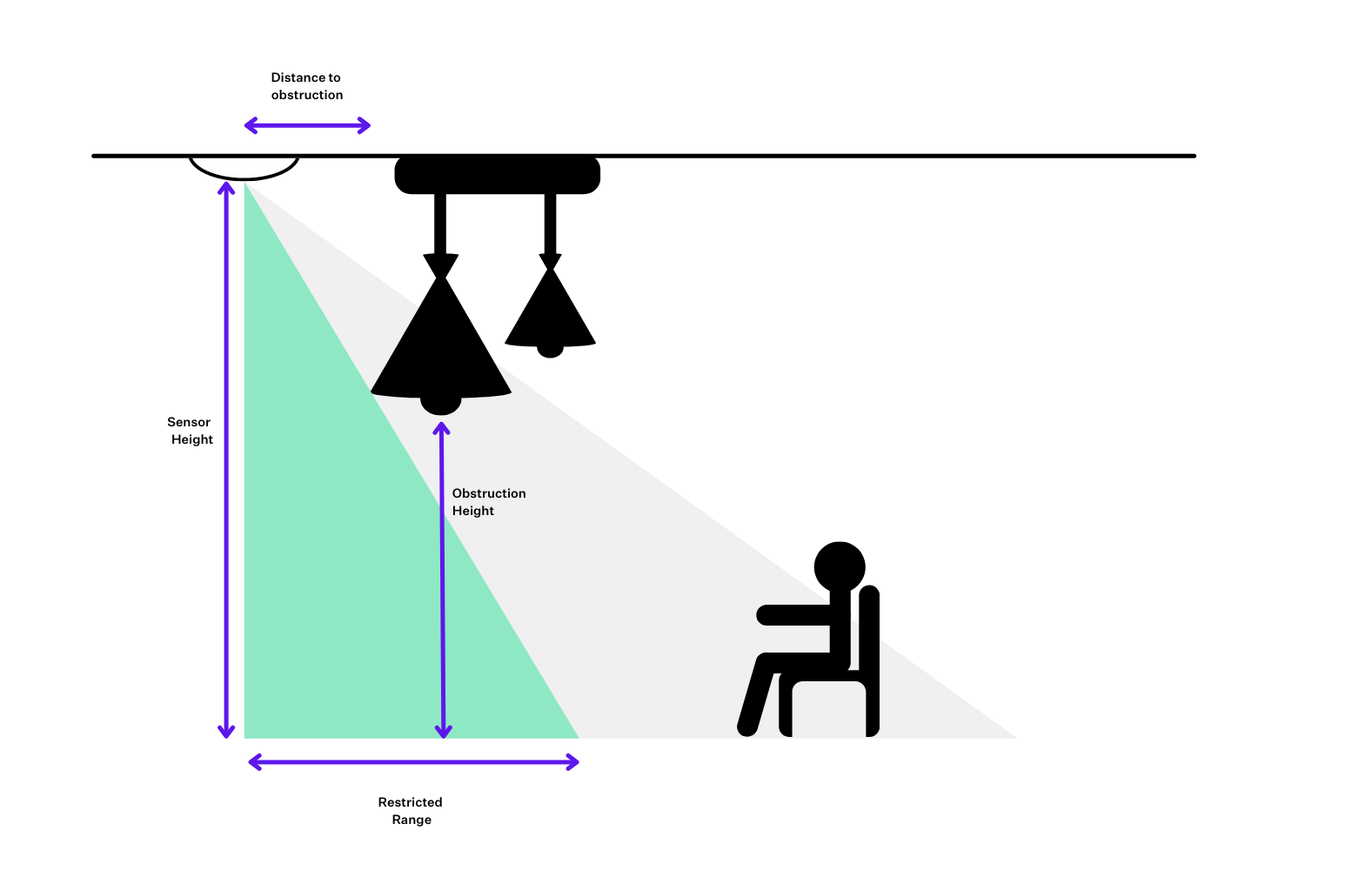

Where there are a line of sight obstructions for the sensors the attached spreadsheet calculator can be used to calculate the restricted range of the sensor.



3 measurements are required:

1. Sensor Height (from ground)

2. Distance to obstruction

3. Obstruction Height (from ground)



The calculator can be downloaded from the end of this article
