Communications Hub Technical Specifications

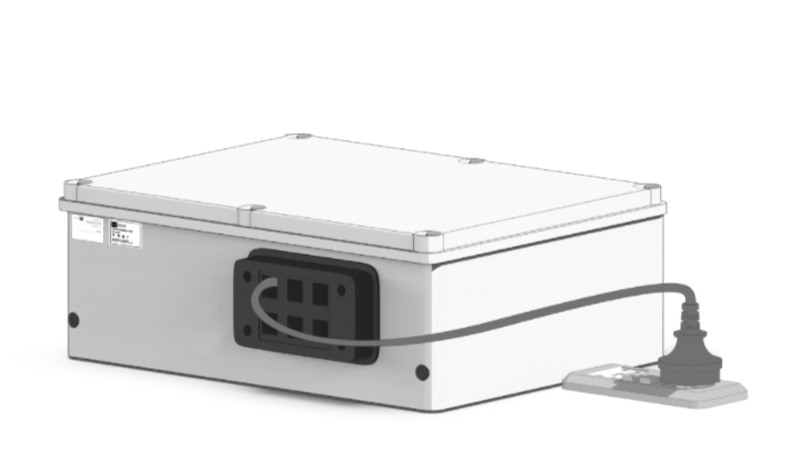

PRIMARY COMMUNICATIONS HUB

Power Supply	External - single phase socket outlet. Separate circuit breaker recommended.
Weight & Dimensions	Length: 32cm / 12.6” Width: 27cm / 10.6” Height: 12cm / 4.7” Weight: 3.1 kg / 109.3oz
Power Consumption	Typical 120W (300W rated power supply)
Installation	Location required with sufficient cellular coverage.
Data Output	The encrypted binary packets from each sensor connected to the gateway is proxied to the XY Sense cloud platform.
Communication Protocol	Between sensors & gateway - wired Between Primary & Secondary Hubs - wired Between XY Sense cloud platform - 3/4G cellular It is possible to connect the gateway to the corporate customer network, although this is not recommended for pilots as it can delay kickoff. This may require additional security sign-off from the customer info-sec team.
Mounting mechanism	Unit is a standalone item and is typically attached to threaded rods or structural wall/ceiling.
Software Updates	Secure over the air remote updates

Power Supply	External - single phase socket outlet. Separate circuit breaker recommended.
Weight & Dimensions	Length: 32cm / 12.6” Width: 27cm / 10.6” Height: 12cm / 4.7” Weight: 3.1 kg / 109.3oz
Power Consumption	Typical 120W (300W rated power supply)
Data Output	The encrypted binary packets from each sensor connected to the gateway is proxied to the XY Sense cloud platform.
Communication Protocol	Between sensors & gateway - wired Between Primary & Secondary Hubs - wired Between XY Sense cloud platform - 3/4G cellular via Primary Hub It is possible to connect the gateway to the corporate customer network, although this is not recommended for pilots as it can delay kickoff. This may require additional security sign-off from the customer info-sec team.
Mounting mechanism	Unit is a standalone item and is typically attached to threaded rods or structural wall/ceiling.
Software Updates	Secure over the air remote updates
