How to install Flex Area Sensors

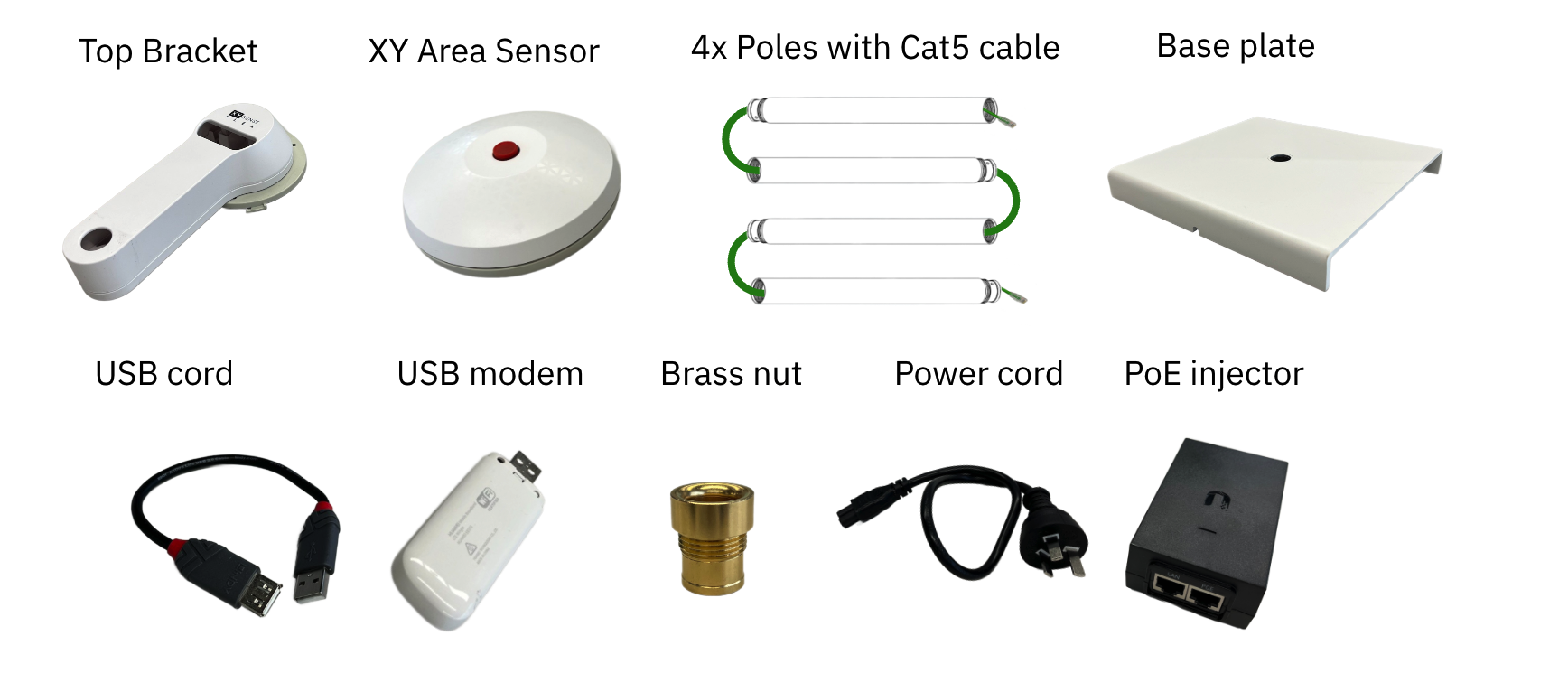

Parts list

Please also have a laptop onhand.

1. Record the Sensor serial ID and its location, as this will be required in the app.

The Sensor ID is found on the XY Sense sticker under the barcode.

2. Assemble USB Modem

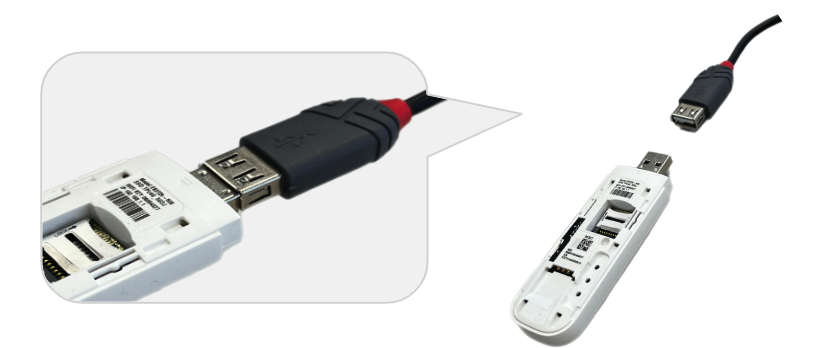

Plug USB cord into USB Modem

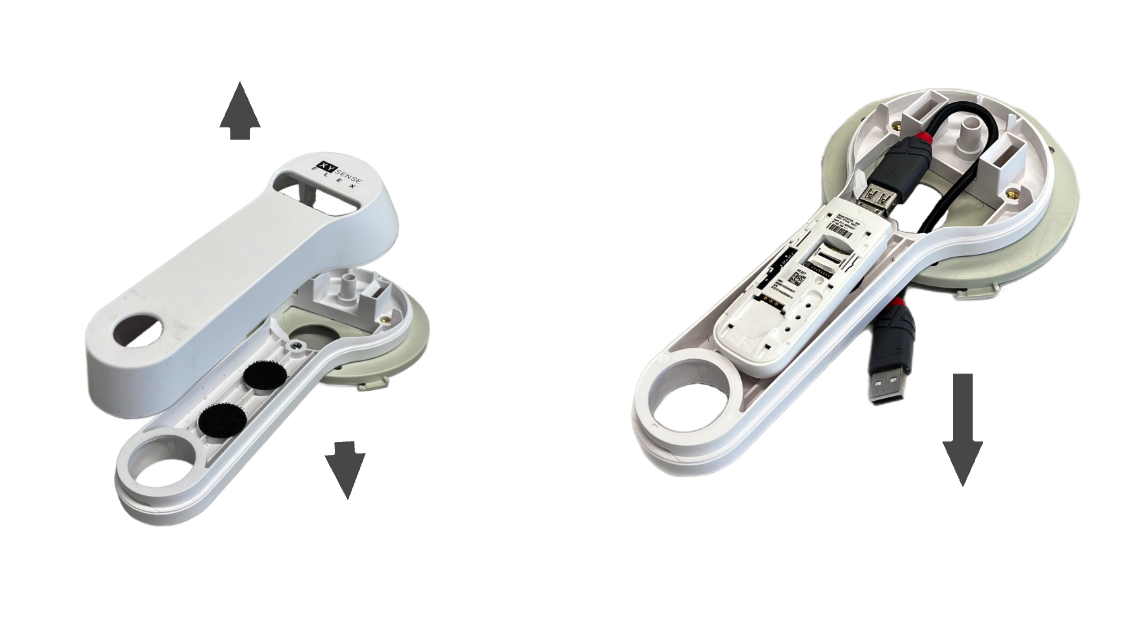

Unclip the top bracket pulling upward. Place USB into top bracket and pull USB cord through the middle

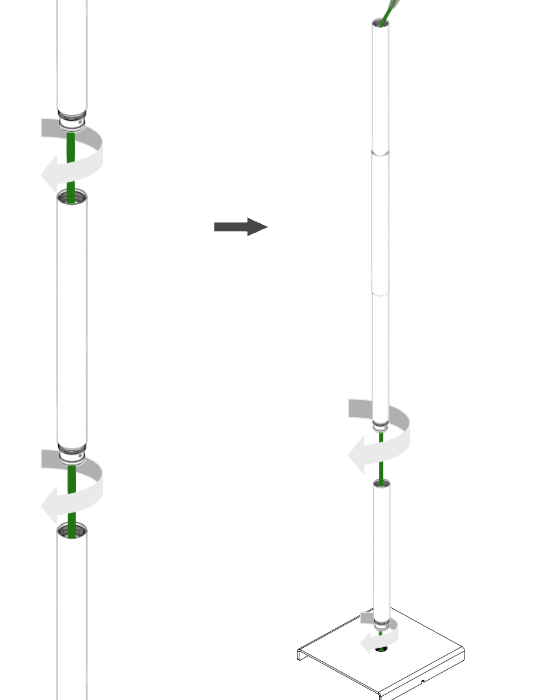

3. Screw the poles together, starting from the bottom

4. Assemble PoE injector in the base

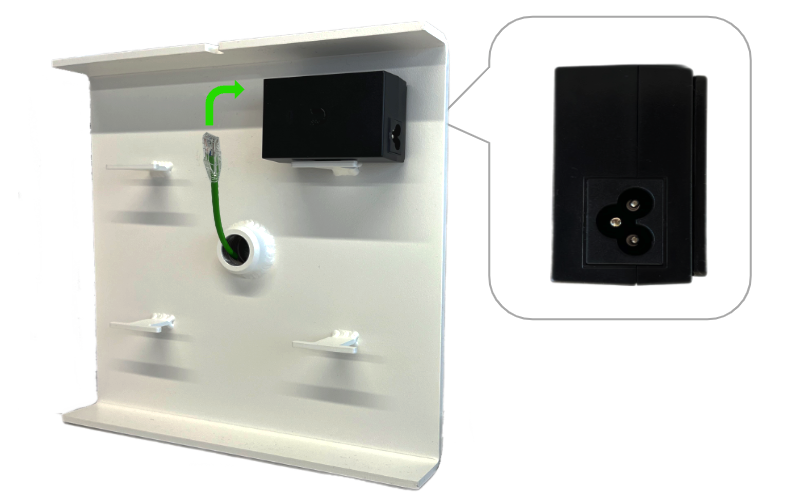

Clip PoE injector onto base, with the power ports facing outwards

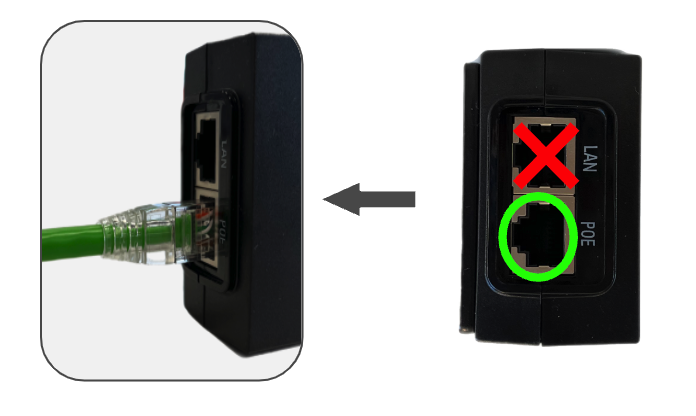

Connect CAT5 cable into the PoE port

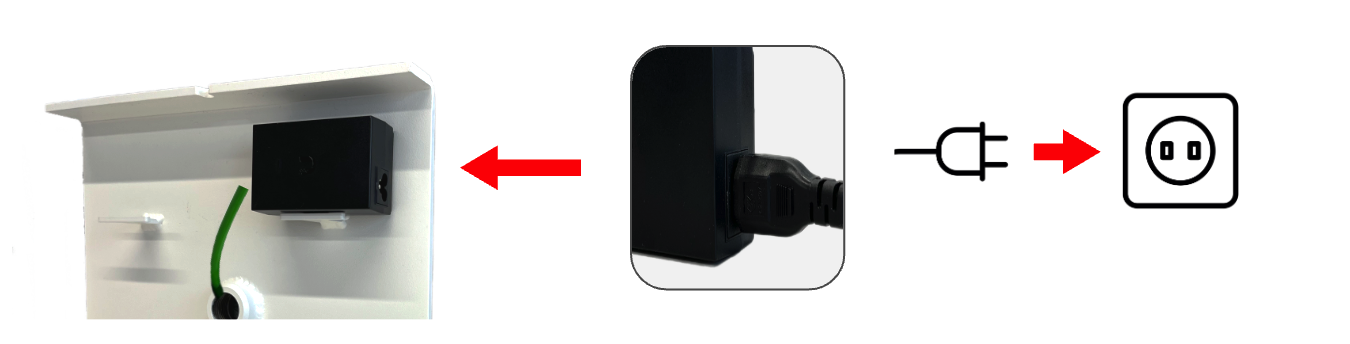

Connect power cord to PoE injector and plug into wall socket.

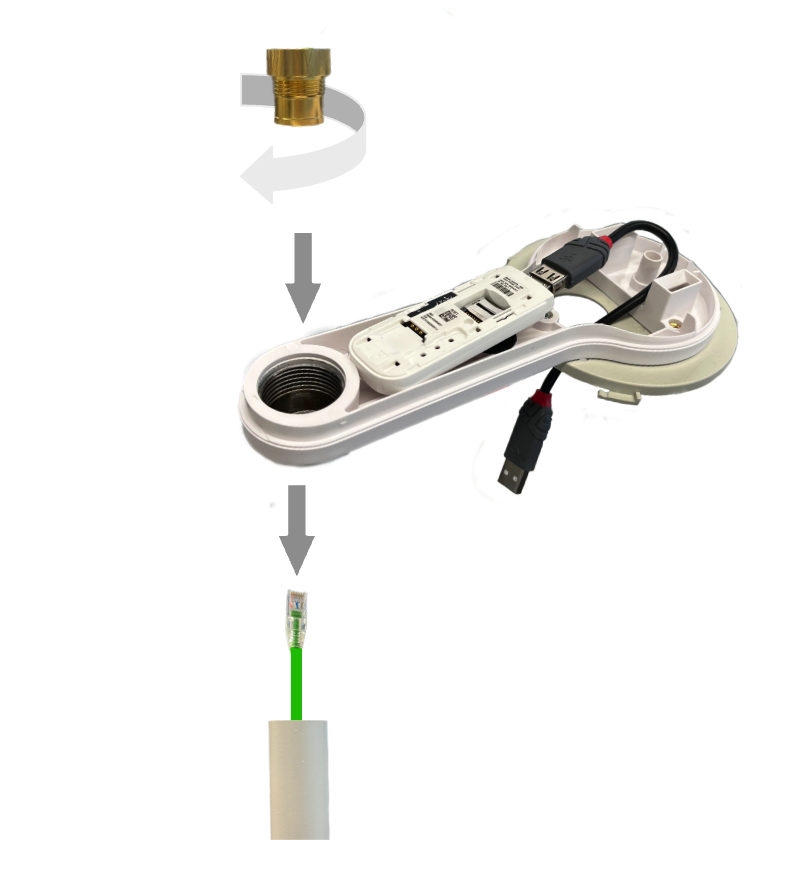

5. Attach top bracket to the pole using the brass nut

Screw in the brass nut to attach top bracket to the pole

6. Attach cables to the sensor

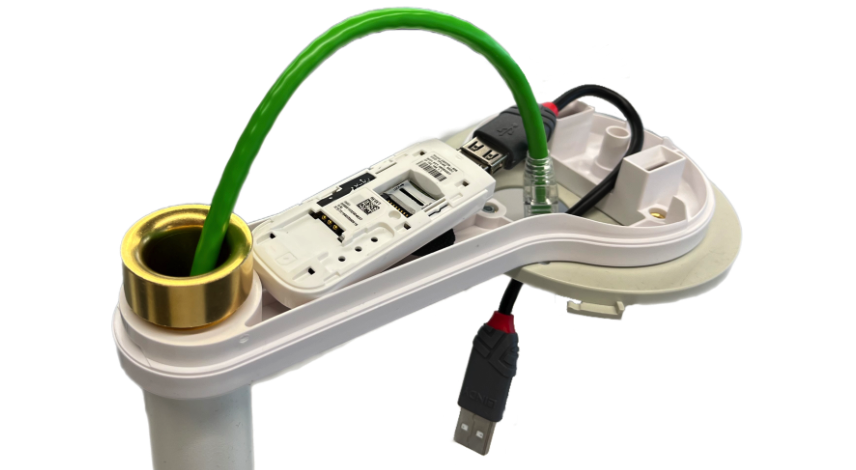

Pull CAT5 cable through the middle of the top bracket

Attach USB and CAT5 cables to the sensor. Either LAN port can be used.

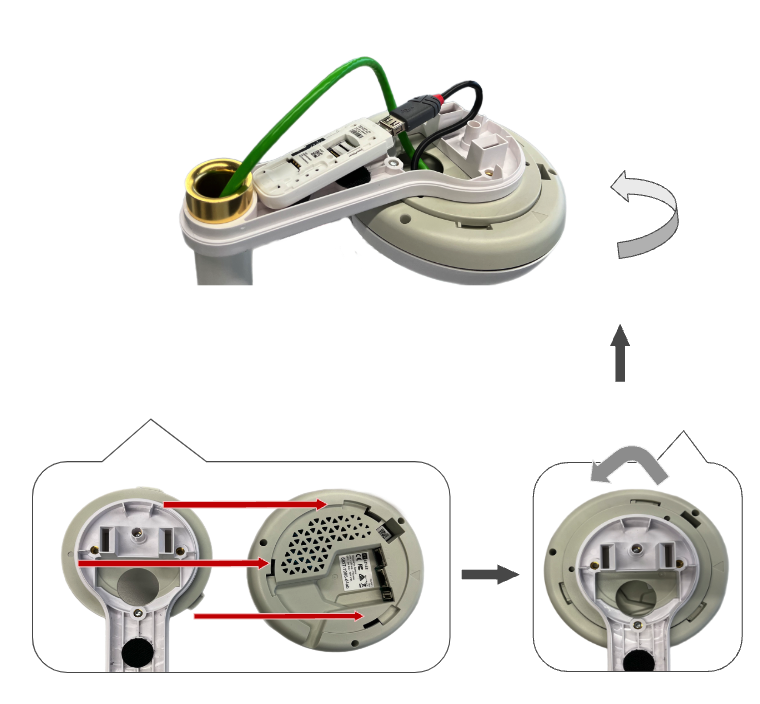

7. Connect sensor to top bracket

Twist to attach the sensor to the top bracket

8. Turn on power, check network connectivity and finalise

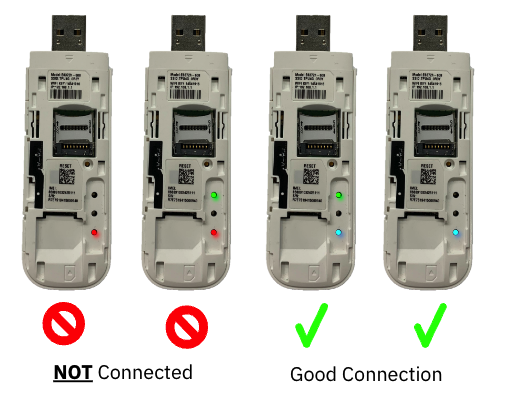

Turn on power and wait 2 minutes for USB modem lights to check connectivity. If it has a green or blue light, it is ready to come online.

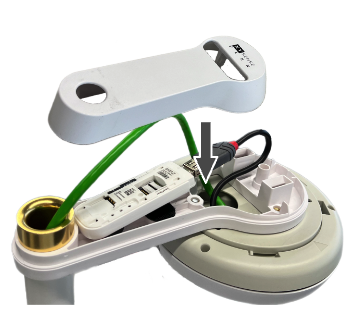

Clip the top bracket on

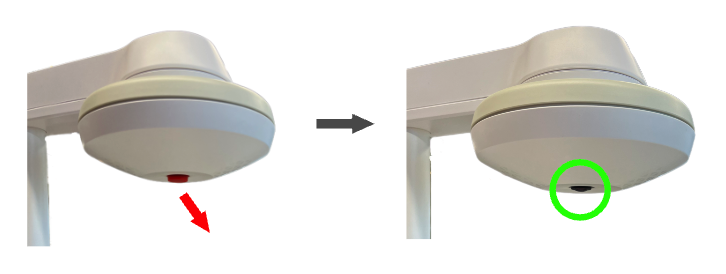

Remove the red lens cap

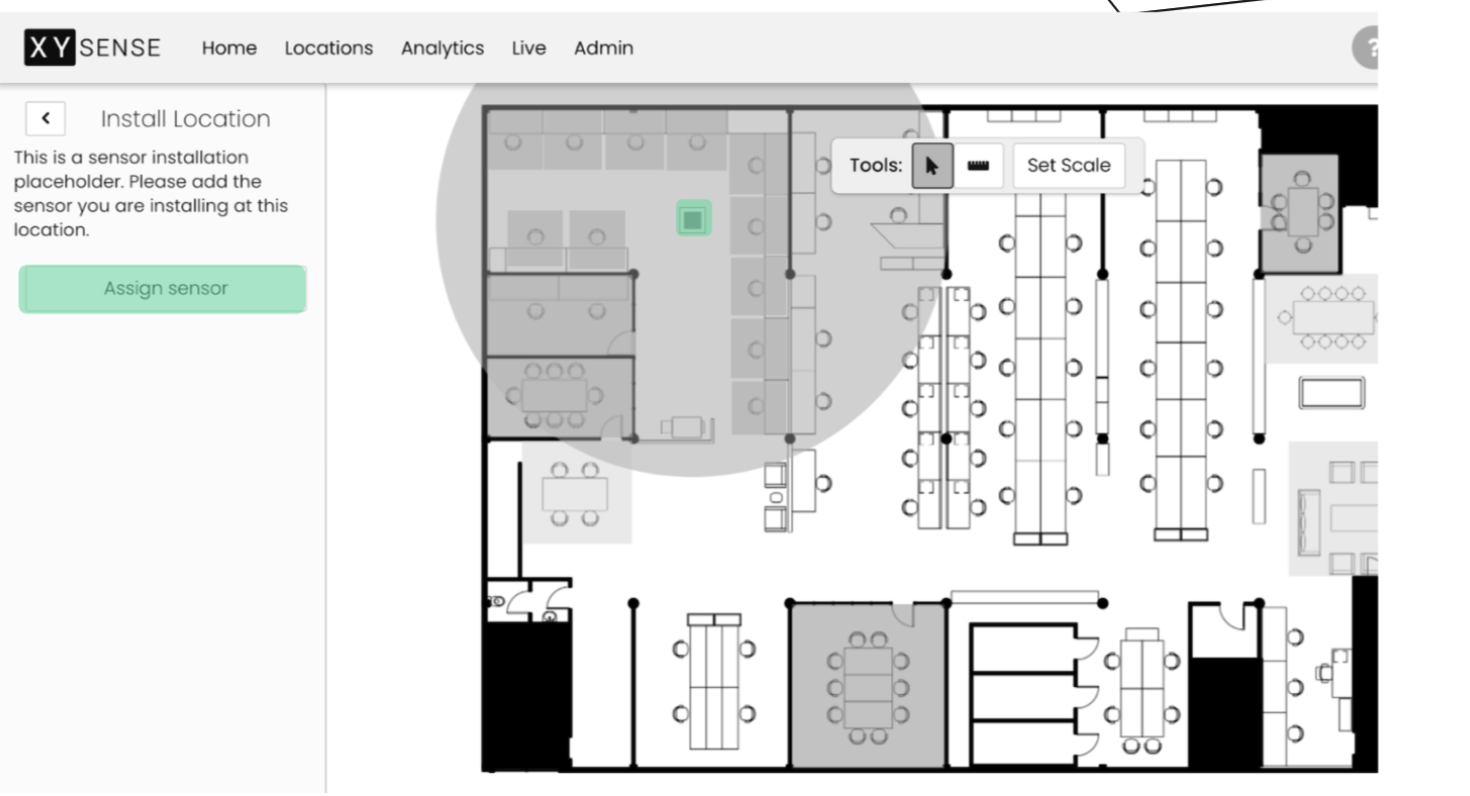

9. Proceed to steps to add an XY Area sensor to XY application

Add a sensor to XY app
